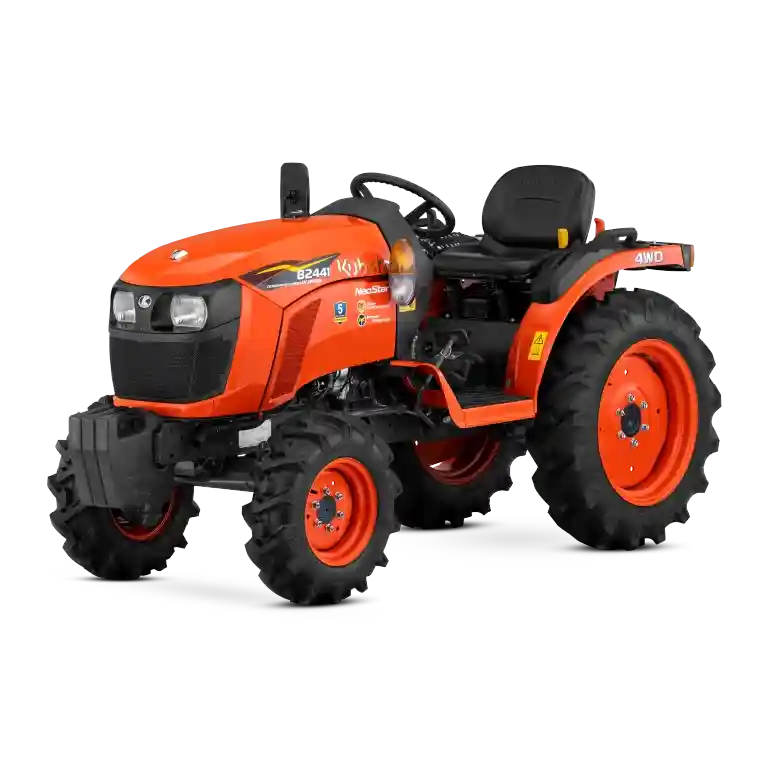

Kubota Neostar B2441 4WD Tractor

Key Features

Engine (CC) 1123 CC
Clutch Type Single
Gear Type Side Shift
Drive Type 4WD

Model Overview

The Kubota Neostar B2441 4WD Tractor is a compact yet powerful 24 HP mini tractor, designed to deliver reliable performance for today’s farming needs. Equipped with a robust 1123 CC, 3-cylinder liquid-cooled engine featuring advanced E-TVCS technology, it offers efficient fuel consumption and dependable power output with 17.4 PTO HP.
This 4WD tractor comes with a 9 forward + 3 reverse gear transmission, providing versatile speed options for various agricultural tasks. The Kubota Neostar B2441 4WD Tractor also includes power steering, ensuring smooth and easy maneuverability even in challenging field conditions.
Ideal for small to medium farms, this tractor combines efficiency, durability, and modern technology to enhance productivity while maintaining comfort and control.

Engine

Air Filter Dry type
Max Torque 70 NM
No of Cylinder 3
Drive type 4WD
Cooling System Liquid Cooled
PTO HP 17.4
Engine Rated RPM 2600 RPM
Horse Power (HP) 24 HP
Engine Capacity 1123 CC
Engine Type DI engine

Transmission

Reverse Speed (Min-Max) 2.05 ? 11.2 kmph
Forward Speed (Min-Max) 1.00 - 19.8 kmph
Brake Type Oil Immersed Brakes
Clutch type Dry Single Plate Clutch
Gear Shift Type Side Shift
Gear Box 9 F + 3 R
Transmission Type Constant Mesh

Specification

Fuel Tank Capacity 23liters

Dimension and weight

Ground Clearance 325 MM
Tractor width 1015 /1105 MM
Overall Length 2410 MM
Wheelbase 1560 MM
Weight 630

Tyre size

Rear 8.3 x 20

Hydraulics

Linkage & Controls 3 point linkage
Lifting capacity (in kg) 750kg

Assurance

Warranty 5000 Hours / 5 Years

Others

Electricals 12V 75W
Accessories Tool, Toplink, Canopy, Hook, Bumper, Drawbar
Turning radius with brake 2100 MM
Steering Type Power Steering
